Precise delivery of water

HH20 Watering Systems

Precise delivery of water

Highlights

  •  FeatherSoft™ Hi-Flow Nipples with LitterGard ™ Cups for Breeders and Pullets.
  • FeatherSoft™ Advantage Nipples or FeatherSoft™ Hi-Flow Nipples with LitterGard for Broilers.
  • 360 degree triggering.
  • One nipple from start to finish.
  • Raised water entry point.

Built to Perform

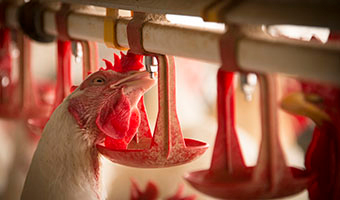

Raised Water Entry Point

The nipple’s raised water entry point inside the water pipe eliminates the possibility of sediments from entering the nipple assembly.

Raised Water Entry Point

Patented three part nipple design

Simple Design

ncludes an all stainless steel body or a stainless steel body with plastic shell, triggering pin and multi-stage metering pin. The water metering pin, extruding inside the water pipe, has a large diameter which enables it to more effectively capture and direct water into the nipple.

Simple Design

360° Side Action Triggering

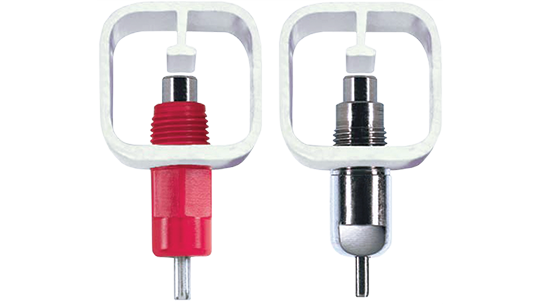

Feathersoft™ Nipples

The patented 360 degree triggering Feathersoft™ Nipples makes it easy to trigger the pin for an ample supply of water for birds of all ages.

Feathersoft™ Nipples

Option

LitterGard Cups™

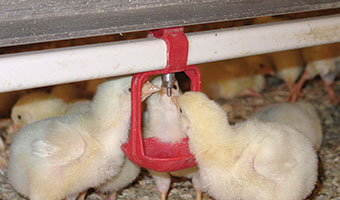

LitterGard Cups are designed to catch any water spillage caused by the aggressive triggering of larger birds, improving litter conditions throughout the building. LitterGard Cup are available in both one arm or two arm models.

LitterGard Cups

Option

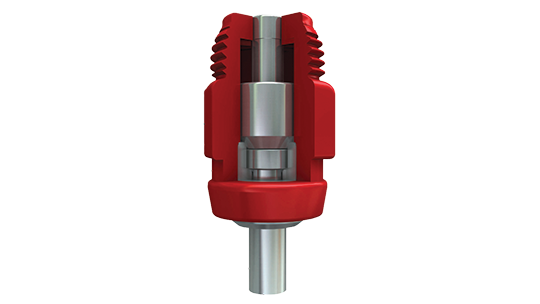

OptiGROW™

The OptiGROW™ broiler nipple has been optimized for growth. The larger diameter pin holds a large water drop and requires less triggering force to get day old birds off to a fast start. The high quality design protects against corrosion and avoids deposits to keep the nipple clean. OptiGROW™ delivers proven and dependable results with first-week low mortality and increased weight gains on jumbo birds.

OptiGROW

Feathersoft Nipple Specifications

Number of Birds per Nipple10-12 FeatherSoft Advantage14-17 FeatherSoft Hi-Flow with LitterGard
Standard Nipple Options per 10′ (3m) section*10, 12 or 15 Nipples
Max. Recommended System Length250′ (80m) per Regulator
Water Pressure Requirement 150′ LengthPressure Regulator – Min. 20 psi (1.380 bars), Max. 45 psi (3,103 bars)

* Other quantity options available.
